IN1048SL
IN1048SL

Authentic I Series

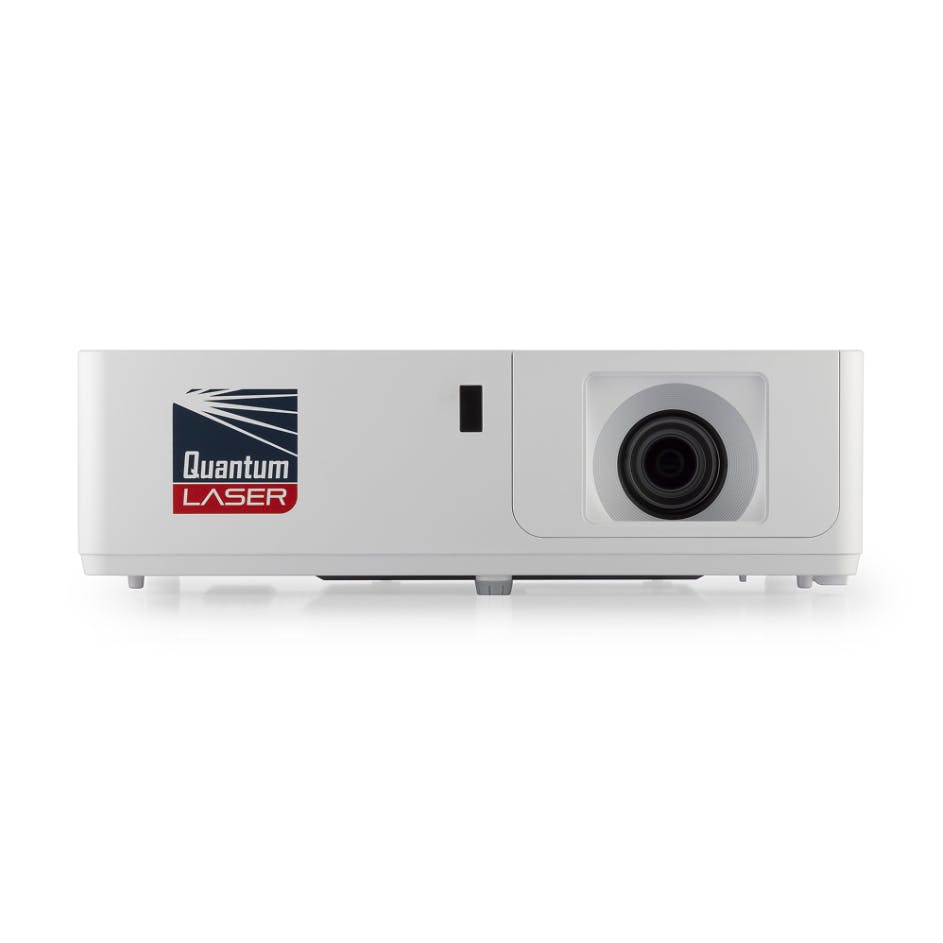

IN1048SL Datasheet

Features

Reliable and Eco-Friendly

Powered by solid-state laser light source, the Authentic I Series is reliable and environmentally friendly. The lamp, filter, mercury, and maintenance-free design reduces technology waste and lessens environmental impact, supporting sustainability initiatives – making it a strategic choice for forward-thinking businesses.

Saves Energy, Time and Costs

Leveraging laser technology, less power is consumed and energy costs are saved. The Instant On/Off power-up to optimal brightness faster saves wait time. With a light source lifespan of up to 30,000 hours, it helps organizations minimize downtime and maximize productivity.

Flexible Projection for Different Spaces

Deliver immersive and creative experiences with the flexibility of 360-degree and portrait projection capabilities. You can freely place the projector in any direction or angle and display perfectly aligned images anywhere you desire, enhancing your presentations and events.

Brilliant When It Matters

Enjoy crisp images and incredible colors with 6000 lumens. The InFocus Quantum Laser Engine with a massive color gamut and ultra-high 2,000,000:1 contrast ratio brings your screen to life to leave a lasting impression on your audience anytime.

Network Integration and Alfatron Certified

Equipped with multiple connectivity options, such as HDBaseT input, the Authentic I Series significantly enhances installation ease. The robustness of HDBaseT technology ensures that users experience minimal loss in signal quality, regardless of distance, maintaining the integrity of audio and video delivery.


Display Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
1080p, 1920 × 1080
Native Aspect Ratio
16:9
Dynamic Contrast Ratio
2,000,000:1
Brightness (ISO Lumens)
6000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30,000
Maximum Supported Resolution
4096 × 2160
Horizontal Sync. Range (KHz)
15.4 - 91.1
Vertical Sync. Range (Hz) Max
24 ~ 120
Max Uniformity (%)
85

Optical

Lens
1.6x
Lens Zoom Adjustment
Manual
Image Offset (%)
113
Focal Length (mm)
20.91 - 32.62
Vertical Lens shift (%)
103 - 118

Connectivity

INPUTS
Mini D-sub 15-pin (VGA)
✅✅
HDMI™ 1.4

Power

Power Supply
AC 100 - 240 V; 50~60 Hz
Power Consumption Max (W)
341
Power Consumption Min. (W)
190
Power Consumption Standby (W)
<0.5

Audio

Audio (W)
1 × 10
Fan Noise (dB)
28-30

Environmental

Environmental
WEEE, RoHS
Safety and Regulatory
CE, EAC, cTUVus, CCC, FCC, FDA, NOM

General

Operating Temperature (C/F)
5 - 40 / 41 - 104
Operating Humidity (%)
10 - 85
Max Operating Altitude (m/ft)
3,048 / 10,000
Storage Temperature (C/F)
-0 - 60 / 32 - 140
Storage Humidity (%)
0 - 95
