Essential+ Series IN119BB
Essential+ Series IN119BB

WUXGA - 3400 ☀ - 16:10 Aspect Ratio

The IN119BB projector does more with ultra-long lamp life, high brightness, and amazing connectivity. Beam more perfect images and engage your audience with 2 HDMI inputs, VGA, video, and audio capability. Plus, the compact design and lightweight makes it as easy to move around as it is to install.

Features

Industry-leading 15000 hours of lamp life

Our lamps are designed to last longer, ensuring extended durability and long-term performance. This exceptional longevity reduces the need for replacements, offering unparalleled reliability and cost savings over time.

Comprehensive range of resolutions from SVGA to WUXGA

Enjoy the flexibility and versatility needed to handle any projection scenario, ensuring your visuals are always crisp, clear, and impactful.

Eco-Friendly with Minimal Maintenance and Filter-Free

With minimal maintenance and no filter to replace, this means less waste and reduced environmental impact contributing to sustainability for a greener future while providing reliable and consistent performance.

Outstanding 30000:1 Contrast Ratio for Better Visual Quality

Indulge in a vivid, clear visual feast with enhanced image clarity and better details with deeper blacks, brighter whites and more vibrant colours.

Seamlessly switching between different devices

Easily connect to multiple sources and switch effortlessly between the devices for your projection needs ensuring a hassle-free viewing experience and enhancing overall performance.

Bright, Vivid Images on Any Surface

Transform any room into a dynamic visual space even in well-lit rooms. With 4000 lumens on standard throw models and 3800 lumens on short throw models, image colours and details are crisp and clear.

Make Bigger Impact With Short Throw Models

Pair short-throw models with interactive whiteboards in classrooms to elevate lessons visually and improve class engagement.

Direct Power On/ Direct Power Off

No more waiting. The projector instantly powers up when it receives an electric current. When you are finished, simply switch off the power, no need for lengthy cooling period to shut it down.

Advanced Digital Image Correction

With the new digital edge masking and image shift features, we make perfecting those final image adjustments easy.

24/7 Operation

The Genesis IV Series is designed for 24/7 operations in standard orientation and is ideal for applications requiring extended projection periods.

USB-A Power for Devices

The integrated USB-A power source conveniently powers HDMI devices like Google Chromecast or a wireless dongle to enhance presentation performance.

Full 3D Capability

Captivate the audience with 3D content from almost any 3D source, including 3D Blu-ray players and the latest game consoles.

Lightweight and Portable

Its compact and light form makes it portable, giving you flexibility for different uses.


Projection Technology
Texas Instruments DLP®
Panel Size
0.48" DMD
Native Resolution
WUXGA
Pixels
1920 x 1200
Aspect Ratio
16:10
Contrast Ratio
30000:1
Brightness (Lumens)
3400
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
31.469 ~ 97.551
Vertical Sync. Range (Hz)
56 ~ 85
Uniformity (%)
80

Optical

Lens
1.1x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
110
Focal Length (mm)
15.59 ~ 17.14
F-Stop
2.1
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual
Vertical Keystone Correction
±40
Horizontal Keystone Correction
-
Projection Factor
1.47:1 ~ 1.62:1
Projection Distance (Meters/Feet)
1.0 ~ 9.5 / 3.2 ~ 31
Optical Zoom
1.1:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual

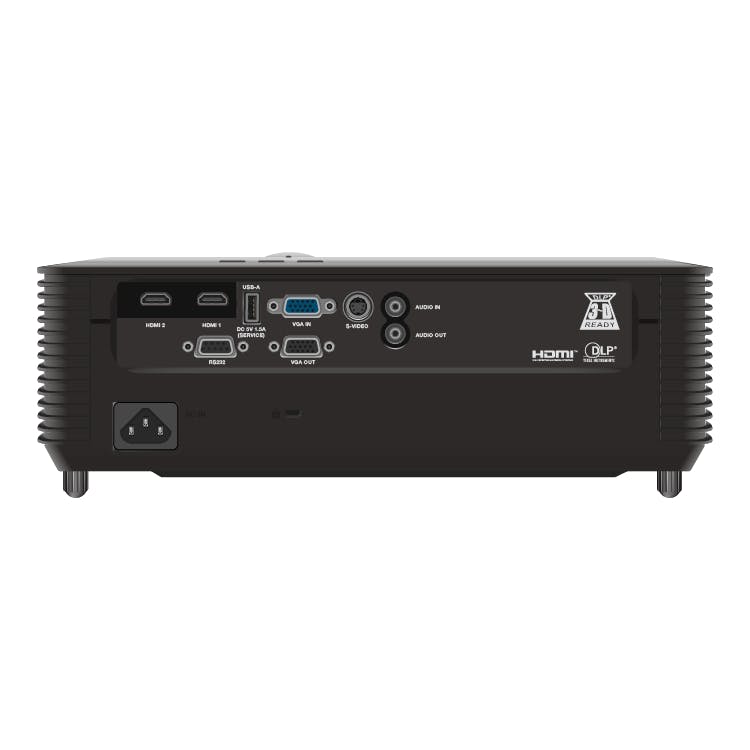

Connectivity

Inputs
Mini D-sub 15-pin (VGA)
Composite Video
-
S-Video
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
3.5 mm Stereo Mini Jack
Powered USB-A for Wireless Dongle
3D Sync
-
Other
RS232
RJ45 HDBaseT
-
All Major 3D Formats
USB-B 2.0 for Service
-
USB-A for Service
Micro USB for Service
-
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-

Power

Power Supply
100-240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5

General

Dimensions (W x H x D) (mm / in)
236 x 313 x 107 / 9 x 12 x 4
Product Weight (Kilograms/Pounds)
2.6 / 5.7
Fan Noise (dB)
30
Audio (W)
10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
In the Box
VGA Cable, Power Cord, Remote Control (No Batteries)
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
