Nemesis II Series
| Display Technology | Texas Instruments DLP® |
| Native Resolution / Aspect Ratio | WXGA / 16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 5000 |
| Product Weight (Kilograms/Pounds) | 3.1 / 6.8 |
| Light Source Life (Maximum Hours) | 30000 |
| Display Technology | Texas Instruments DLP® |
| Native Resolution / Aspect Ratio | WXGA / 16:10 |
| Lens Throw Type | Short Throw |
| Brightness (Lumens) | 4000 |
| Product Weight (Kilograms/Pounds) | 3.1 / 6.8 |
| Light Source Life (Maximum Hours) | 30000 |
| Display Technology | Texas Instruments DLP® |
| Native Resolution / Aspect Ratio | 1080p / 16:9 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 5000 |
| Product Weight (Kilograms/Pounds) | 3.1 / 6.8 |
| Light Source Life (Maximum Hours) | 30000 |
| Display Technology | Texas Instruments DLP® |
| Native Resolution / Aspect Ratio | 1080p / 16:9 |
| Lens Throw Type | Short Throw |
| Brightness (Lumens) | 4000 |
| Product Weight (Kilograms/Pounds) | 3.1 / 6.8 |
| Light Source Life (Maximum Hours) | 30000 |
SELECT A PRODUCT BELOW
| Datasheet | Compare |
Description
The Quantum Laser Nemesis II Series projectors are the perfect combination of energy efficiency and outstanding visual performance, offering brilliant brightness and deep contrast for applications that demand high-quality visuals. Ideal for corporate environments, houses of worship, exhibitions, museums, and art installations, it delivers stunning, immersive imagery with ultimate flexibility. With 360-degree projection, image correction capabilities, and an incredible lifespan, the Quantum Laser Nemesis II Series ensures flawless setup and adaptability in any space, making it the go-to solution for static and dynamic displays.
Consistent Brightness
3D Capability
Rich and Vibrant Colours
Low Total Cost of Ownership
Industry Leading Warranty
High Bright

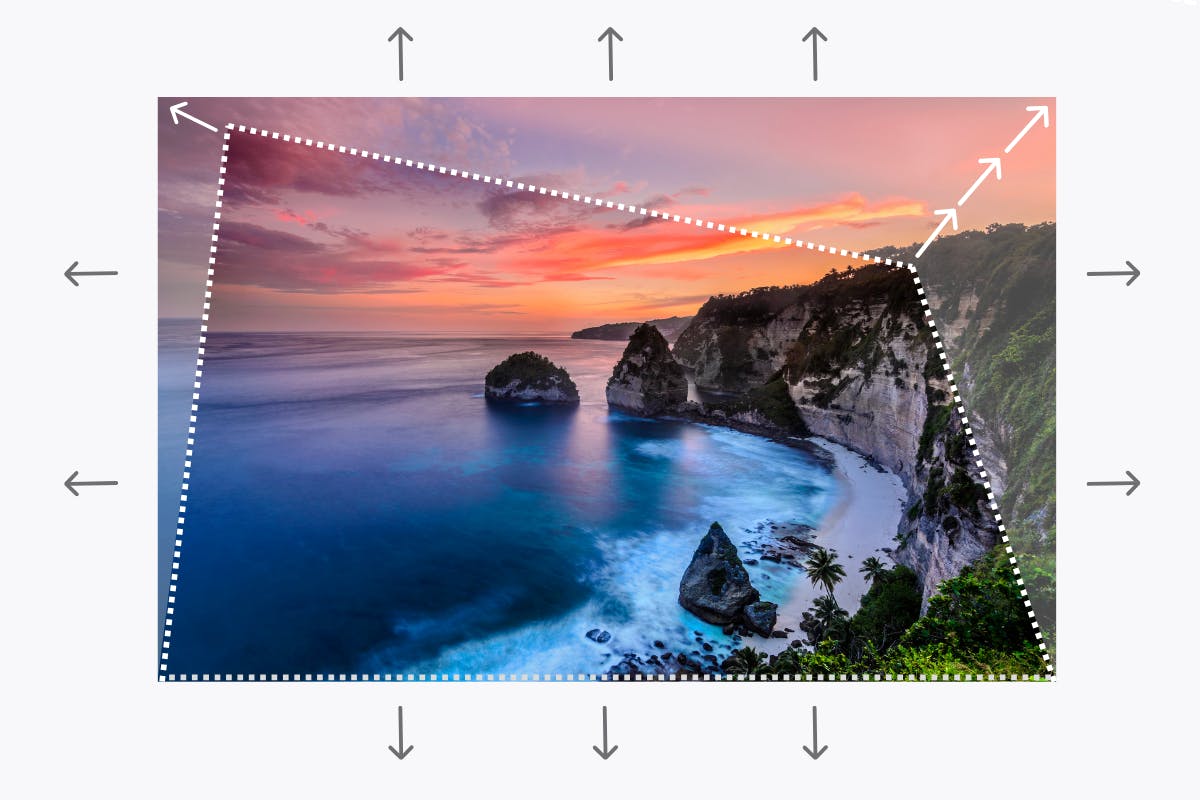

4-Corner Image Correction
Eco-friendly Design
Quantum Colour Engine – Brilliance That Last
The Quantum Colour Engine ensures deeper, richer, and more accurate color reproduction—up to 40% larger color gamut and engineered for long-term stability. With its superior color luminosity, every frame is rich, lifelike, and visually captivating.
Tested against 200+ color parameters and built on solid-state laser technology, it maintains vivid, reliable performance with minimal color fade, even after years of usage.
Effortless Image Adjustments
With flexible horizontal and vertical lens shift, you can position the image precisely on the screen—even in tight or off-center installations. The Nemesis II Series also features advanced 4-point image correction, allowing you to independently adjust each corner for flawless alignment. Whether you’re working in challenging spaces, unconventional angles, or complex setups, your projection remains perfectly framed and distortion-free.
Superior Contrast For Striking Visual Depth
Utilizing laser light sources, the Nemesis II Series delivers a high contrast ratio that produces deep blacks and bright whites, revealing intricate details in both dark and bright scenes. This exceptional contrast range enhances the overall viewing experience, making images more vivid, lifelike and exceptionally clear.
Freedom to Project From Any Angle
With 360° projection, you can display images in any orientation—portrait, landscape, on ceilings and floors. This gives you complete installation flexibility, making it easy to position the projector exactly where your space or creative setup demands.
Eco-friendly Laser Technology That Saves Energy, Time and Costs
The Quantum Laser Series is designed for long-lasting, environmentally conscious performance. Its laser engine consumes less power, helping reduce energy expenses. With a solid-state light source that is lamp-free, filter-free, and mercury-free, you get up to 30,000 hours of maintenance-free operation. Less waste. Less upkeep. A greener and smarter choice.
Seamless Integration Capabilities with Enhanced Connectivity Options
The Nemesis II Series delivers versatile connectivity, supporting all major networking protocols and Crestron Connect 2.0 certification for centralized
control. Ideal for corporate, educational, or large-scale events, it’s a reliable, robust solution for diverse projection needs.
control. Ideal for corporate, educational, or large-scale events, it’s a reliable, robust solution for diverse projection needs.

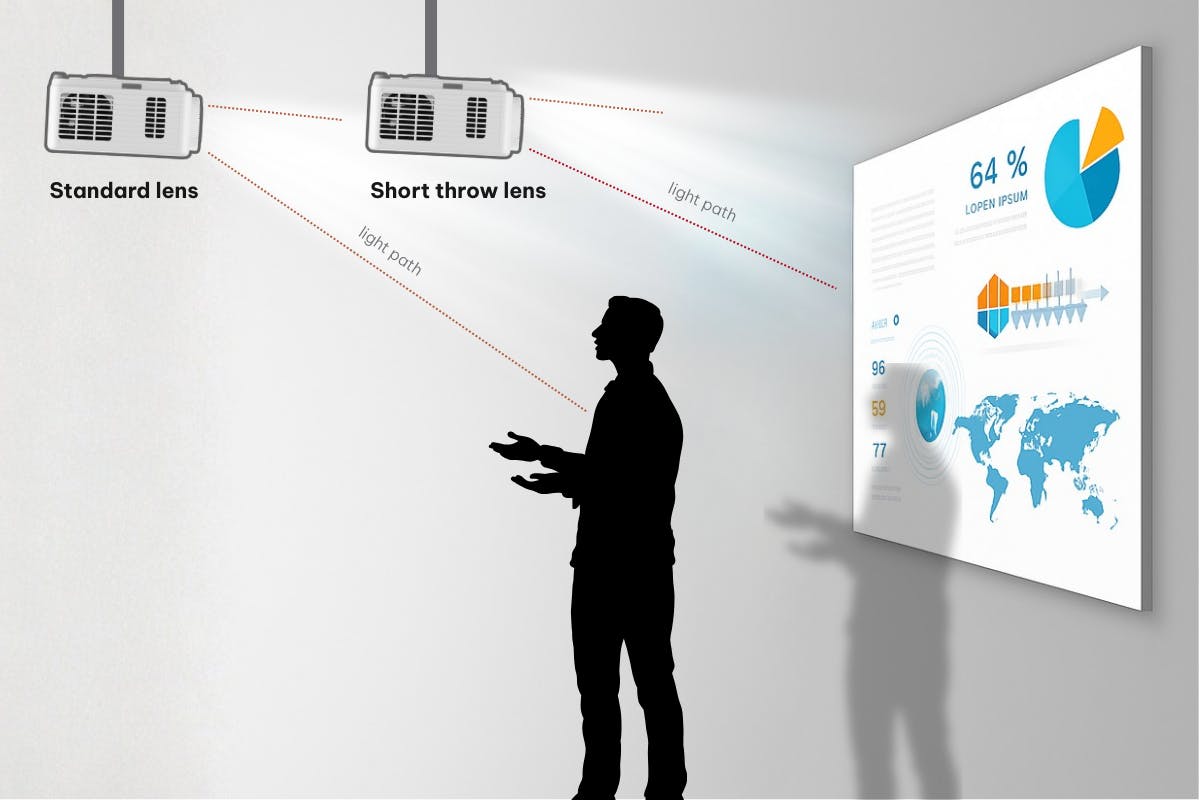

Make a Bigger Impact With Short-Throw Models
Bright, large images with minimal distance – Nemesis II short-throw projection reduces shadows and glare for presenting ease and clearer viewing in classrooms and meeting spaces.
Brilliant When It Matters
Experience vivid clarity and true-to-life color even in bright environments. With 4,000–5,000 lumens of powerful laser brightness, your visuals stay sharp and vibrant. Whether you’re presenting in a boardroom, classroom, or event space, visuals consistently remain clear and impactful for years to come.
Benefits
Product Series
Quantum Laser Nemesis II
Display Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
WXGA
Pixels
1280 x 800
Native Aspect Ratio
16:10
Supported Aspect Ratios
Auto, 4:3, 16:9, 16:10, Full
Contrast Ratio
400000:1
Dynamic Contrast Ratio
2000000:1
Brightness (Lumens)
5000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz) Max
24 ~ 120
Uniformity (%)
85
Lens
1.6x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
112
Focal Length (mm)
20.91~32.62
F-Stop
2.5~3.26
Vertical Lens shift (%)
115
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual/Automatic
Vertical Keystone Correction
± 30°
Horizontal Keystone Correction
± 30°
Projection Factor
1.47~2.35
Projection Distance (Meters/Feet)
1 - 10
Optical Zoom
1.6:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), 2x HDMI™ 1.4, 3.5 mm Stereo Mini Jack
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle
Networking
RJ45 - LAN 10/100/1000
Control
RS232
Power
DC In
Power Supply
100V ~ 240V, 50 - 60Hz
Power Consumption Max (W)
195
Power Consumption Min. (W)
145
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm/in)
278 x 216 x 116 / 10.9 x 8.5 x 4.6
Product Weight (Kilograms/Pounds)
3.1 / 6.8
Packaged Dimensions (L x W x H) (mm/in)
400 x 280 x 155 / 15.8 x 11.0 x 6.1
Packaged Weight (Kilograms/Pounds)
4.6 / 10.2
PC Compatibility
VGA, SVGA, XGA, HDTV, WXGA, SXGA, SXGA+, UXGA, FHD, WUXGA
Fan Noise (dB)
26 ~ 32
Audio (W)
1 x 15
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%) Non Condensing
10 ~ 85
Max Operating Altitude (meters/feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%) Non Condensing
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA
Environmental
WEEE, RoHS
In The Box
Projector, Simplified Users Guide, Regional Power Cord, Remote Control (no Battery), HDMI Cable, Lens Cap, 230W Adapter
Product Series
Quantum Laser Nemesis II
Display Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
WXGA
Pixels
1280 x 800
Native Aspect Ratio
16:10
Supported Aspect Ratios
Auto, 4:3, 16:9, 16:10, Full
Contrast Ratio
400000:1
Dynamic Contrast Ratio
2000000:1
Brightness (Lumens)
4000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz) Max
24 ~ 120
Uniformity (%)
85
Lens
1:1 Fixed
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
112
Focal Length (mm)
7.51
F-Stop
2.8
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual/Automatic
Vertical Keystone Correction
± 15°
Horizontal Keystone Correction
± 15°
Projection Factor
0.521
Projection Distance (Meters/Feet)
1 - 10
Optical Zoom
1:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), 2x HDMI™ 1.4, 3.5 mm Stereo Mini Jack
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle
Networking
RJ45 - LAN 10/100/1000
Control
RS232
Power
DC In
Power Supply
100V ~ 240V, 50 - 60Hz
Power Consumption Max (W)
195
Power Consumption Min. (W)
145
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm/in)
278 x 216 x 116 / 10.9 x 8.5 x 4.6
Product Weight (Kilograms/Pounds)
3.1 / 6.8
Packaged Dimensions (L x W x H) (mm/in)
400 x 280 x 155 / 15.8 x 11.0 x 6.1
Packaged Weight (Kilograms/Pounds)
4.6 / 10.2
PC Compatibility
VGA, SVGA, XGA, HDTV, WXGA, SXGA, SXGA+, UXGA, FHD, WUXGA
Fan Noise (dB)
26 ~ 32
Audio (W)
1 x 15
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%) Non Condensing
10 ~ 85
Max Operating Altitude (meters/feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%) Non Condensing
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA
Environmental
WEEE, RoHS
In The Box
Projector, Simplified Users Guide, Regional Power Cord, Remote Control (no Battery), HDMI Cable, Lens Cap, 230W Adapter
Product Series
Quantum Laser Nemesis II
Display Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
1080p
Pixels
1920 x 1080
Native Aspect Ratio
16:9
Supported Aspect Ratios
Auto, 4:3, 16:9, 16:10, Full
Contrast Ratio
400000:1
Dynamic Contrast Ratio
2000000:1
Brightness (Lumens)
5000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
3840 x 2160
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz) Max
24 ~ 120
Uniformity (%)
85
Lens
1.6x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
116
Focal Length (mm)
20.91~32.62
F-Stop
2.5~3.26
Vertical Lens shift (%)
120
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual/Automatic
Vertical Keystone Correction
± 30°
Horizontal Keystone Correction
± 30°
Projection Factor
1.40~2.24
Projection Distance (Meters/Feet)
1 - 10
Optical Zoom
1.6:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), 2x HDMI™ 2.0, 3.5 mm Stereo Mini Jack
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle
Networking
RJ45 - LAN 10/100/1000
Control
RS232
Power
DC In
Power Supply
100V ~ 240V, 50 - 60Hz
Power Consumption Max (W)
195
Power Consumption Min. (W)
145
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm/in)
278 x 216 x 116 / 10.9 x 8.5 x 4.6
Product Weight (Kilograms/Pounds)
3.1 / 6.8
Packaged Dimensions (L x W x H) (mm/in)
400 x 280 x 155 / 15.8 x 11.0 x 6.1
Packaged Weight (Kilograms/Pounds)
4.6 / 10.2
PC Compatibility
VGA, SVGA, XGA, HDTV, WXGA, SXGA, SXGA+, UXGA, FHD, WUXGA, 4K
Fan Noise (dB)
26 ~ 32
Audio (W)
1 x 15
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%) Non Condensing
10 ~ 85
Max Operating Altitude (meters/feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%) Non Condensing
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA
Environmental
WEEE, RoHS
In The Box
Projector, Simplified Users Guide, Regional Power Cord, Remote Control (no Battery), HDMI Cable, Lens Cap, 230W Adapter
Product Series
Quantum Laser Nemesis II
Display Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
1080p
Pixels
1920 x 1080
Native Aspect Ratio
16:9
Supported Aspect Ratios
Auto, 4:3, 16:9, 16:10, Full
Contrast Ratio
400000:1
Dynamic Contrast Ratio
2000000:1
Brightness (Lumens)
4000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
3840 x 2160
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz) Max
24 ~ 120
Uniformity (%)
85
Lens
1:1 Fixed
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
116
Focal Length (mm)
7.51
F-Stop
2.8
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual/Automatic
Vertical Keystone Correction
± 15°
Horizontal Keystone Correction
± 15°
Projection Factor
0.496
Projection Distance (Meters/Feet)
1 - 10
Optical Zoom
1:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), 2x HDMI™ 2.0, 3.5 mm Stereo Mini Jack
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle
Networking
RJ45 - LAN 10/100/1000
Control
RS232
Power
DC In
Power Supply
100V ~ 240V, 50 - 60Hz
Power Consumption Max (W)
195
Power Consumption Min. (W)
145
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm/in)
278 x 216 x 116 / 10.9 x 8.5 x 4.6
Product Weight (Kilograms/Pounds)
3.1 / 6.8
Packaged Dimensions (L x W x H) (mm/in)
400 x 280 x 155 / 15.8 x 11.0 x 6.1
Packaged Weight (Kilograms/Pounds)
4.6 / 10.2
PC Compatibility
VGA, SVGA, XGA, HDTV, WXGA, SXGA, SXGA+, UXGA, FHD, WUXGA, 4K
Fan Noise (dB)
26 ~ 32
Audio (W)
1 x 15
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%) Non Condensing
10 ~ 85
Max Operating Altitude (meters/feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%) Non Condensing
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA
Environmental
WEEE, RoHS
In The Box
Projector, Simplified Users Guide, Regional Power Cord, Remote Control (no Battery), HDMI Cable, Lens Cap, 230W Adapter
Simplified User Guide
CAD Drawing
Warranty Statement
Full Datasheet
User Guide
