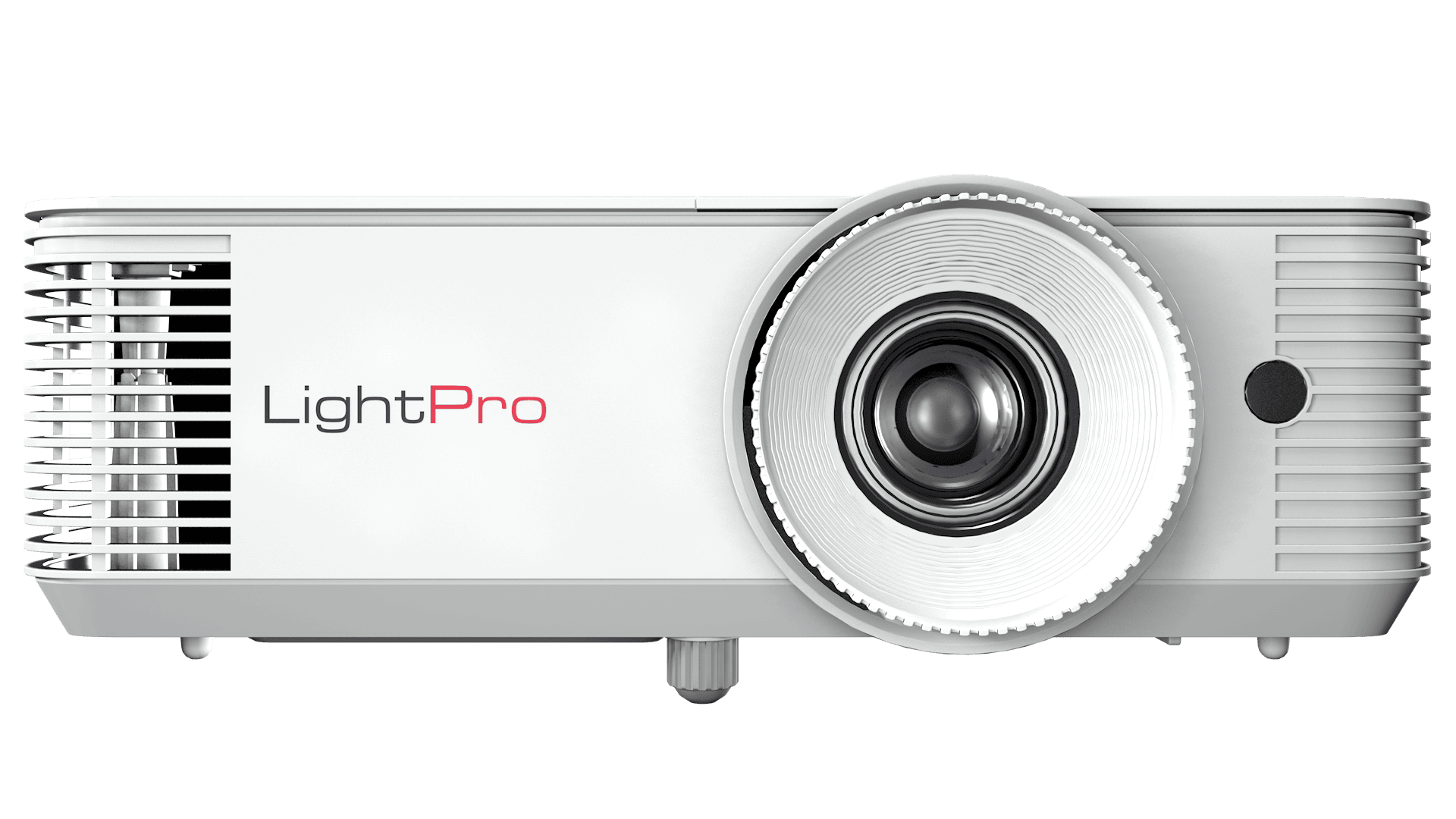

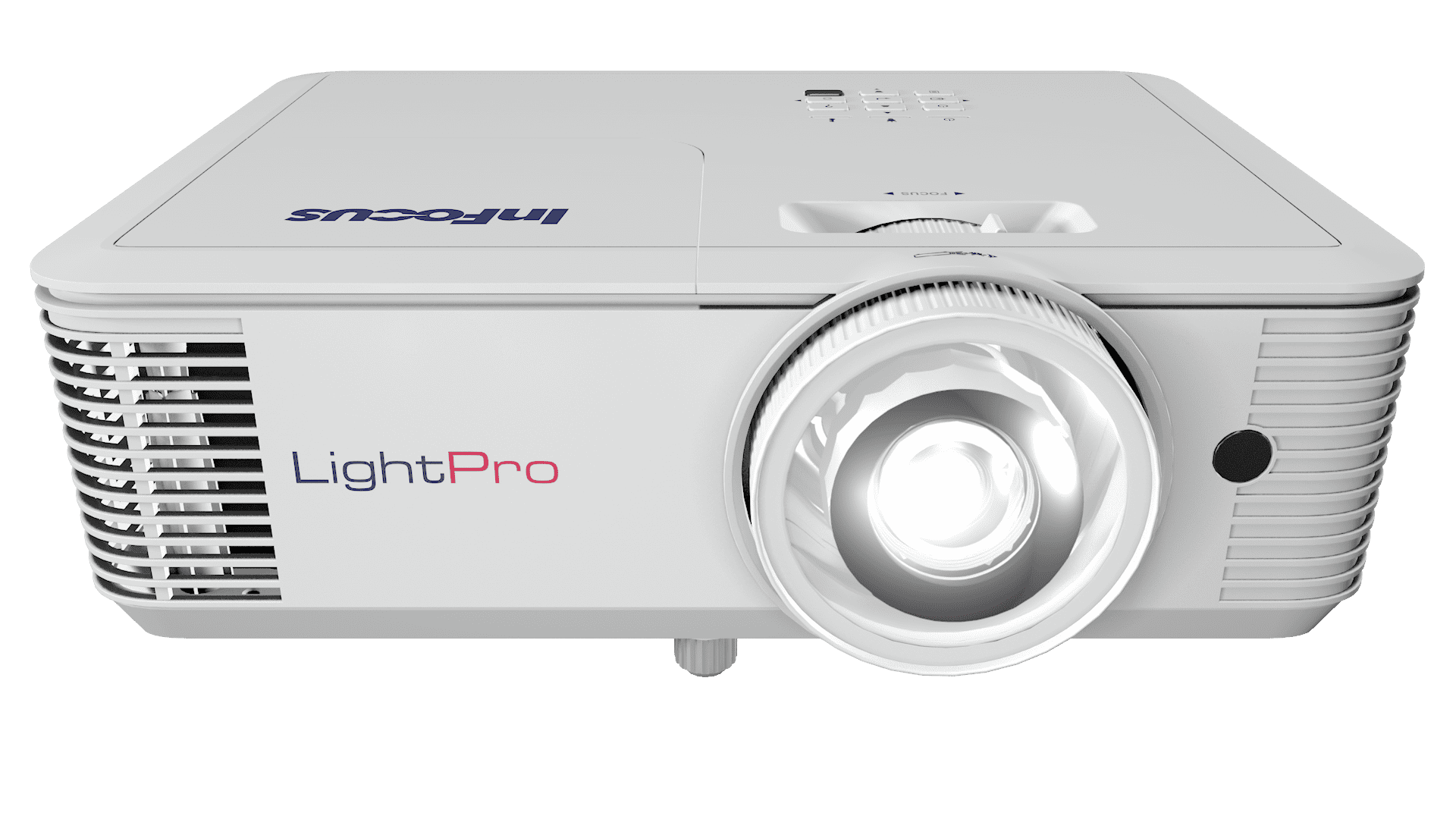

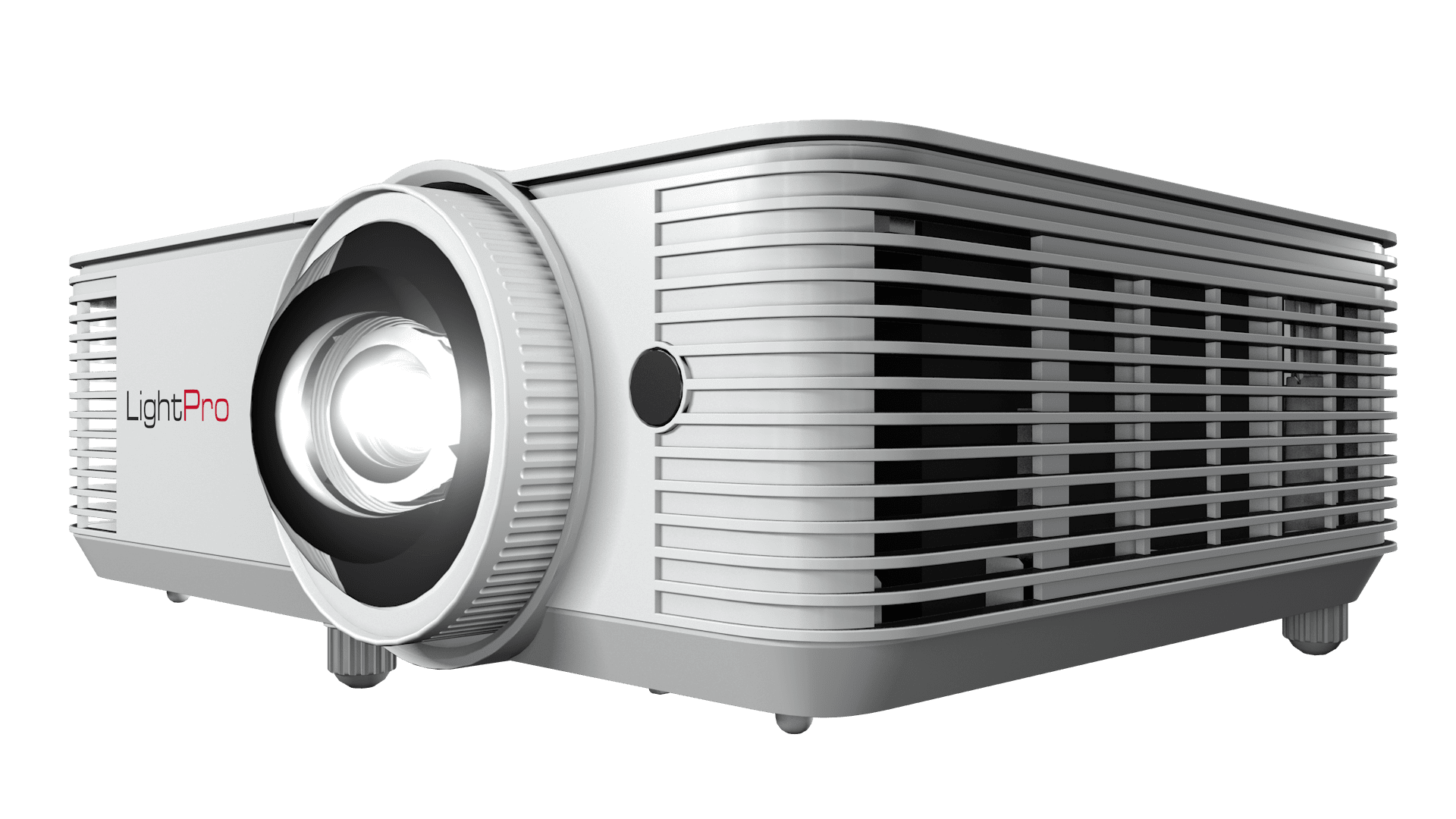

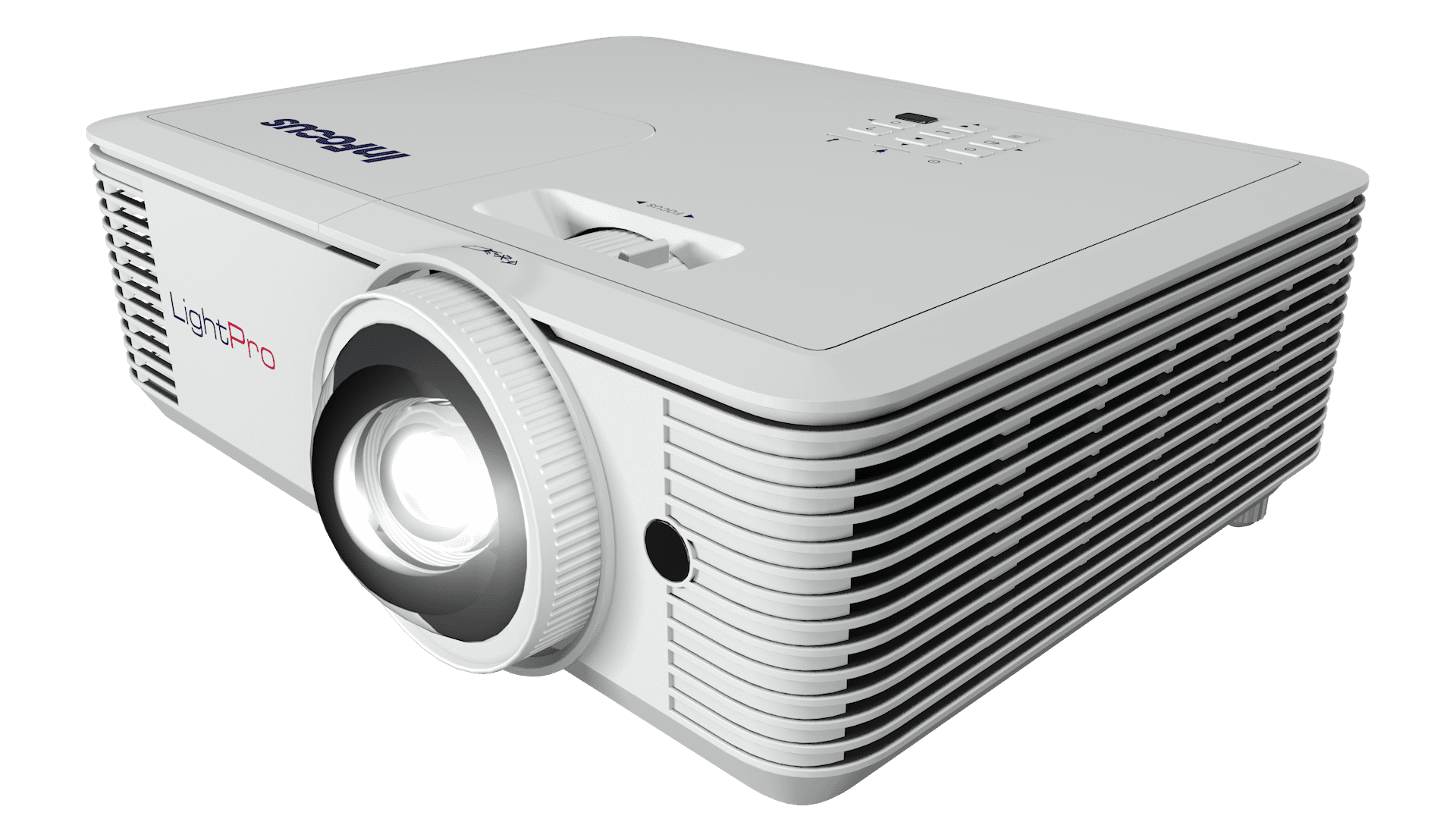

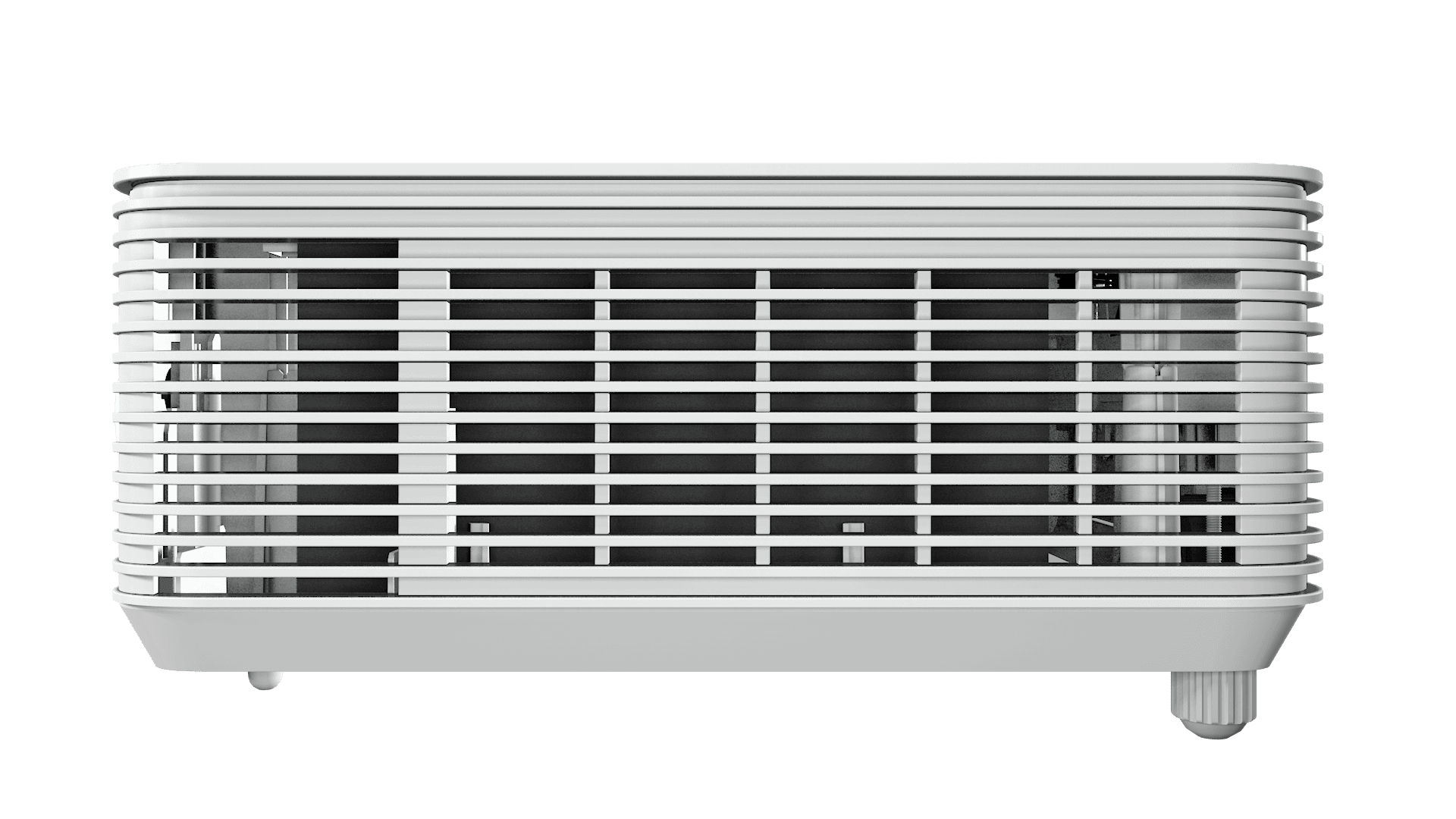

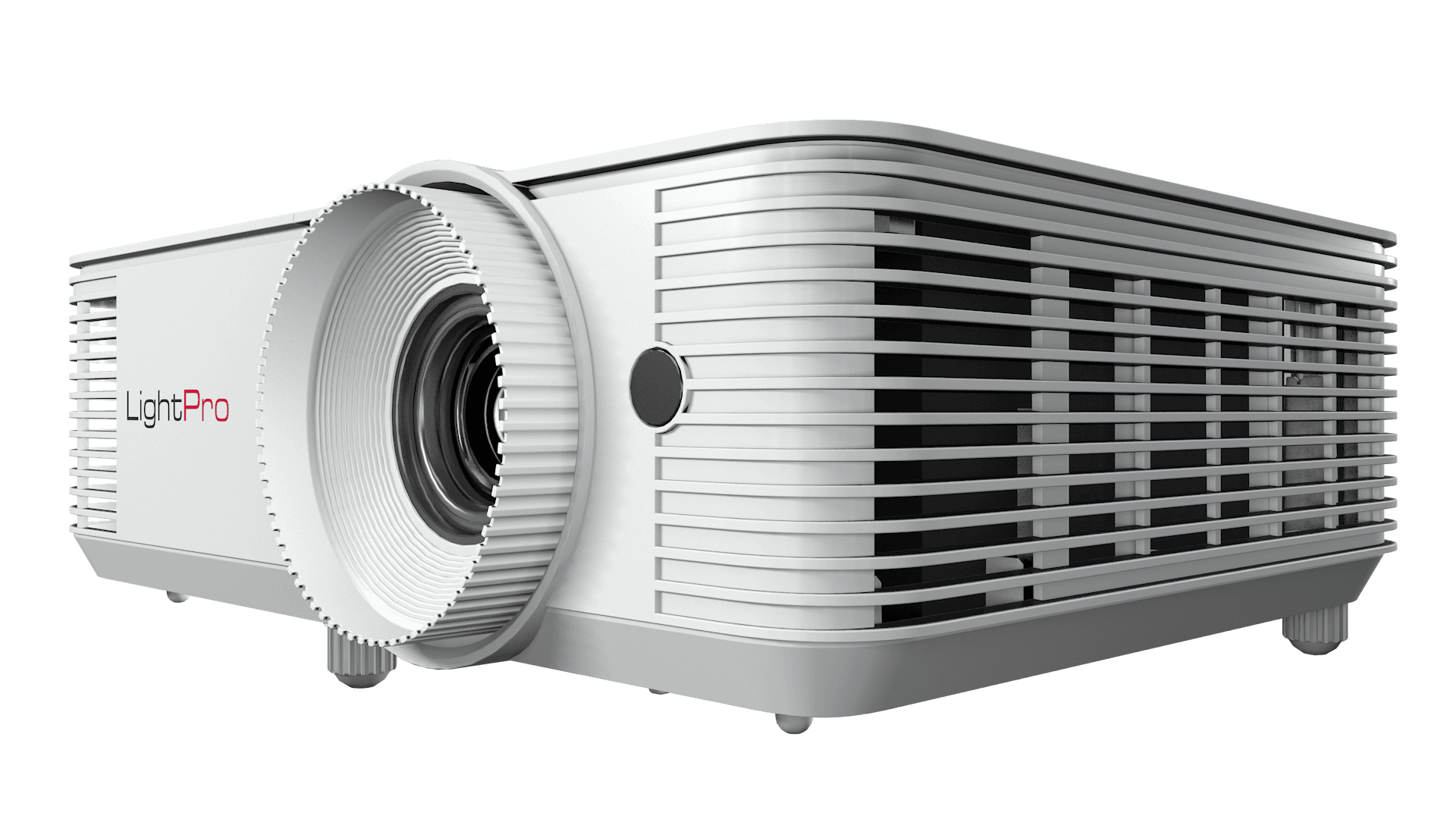

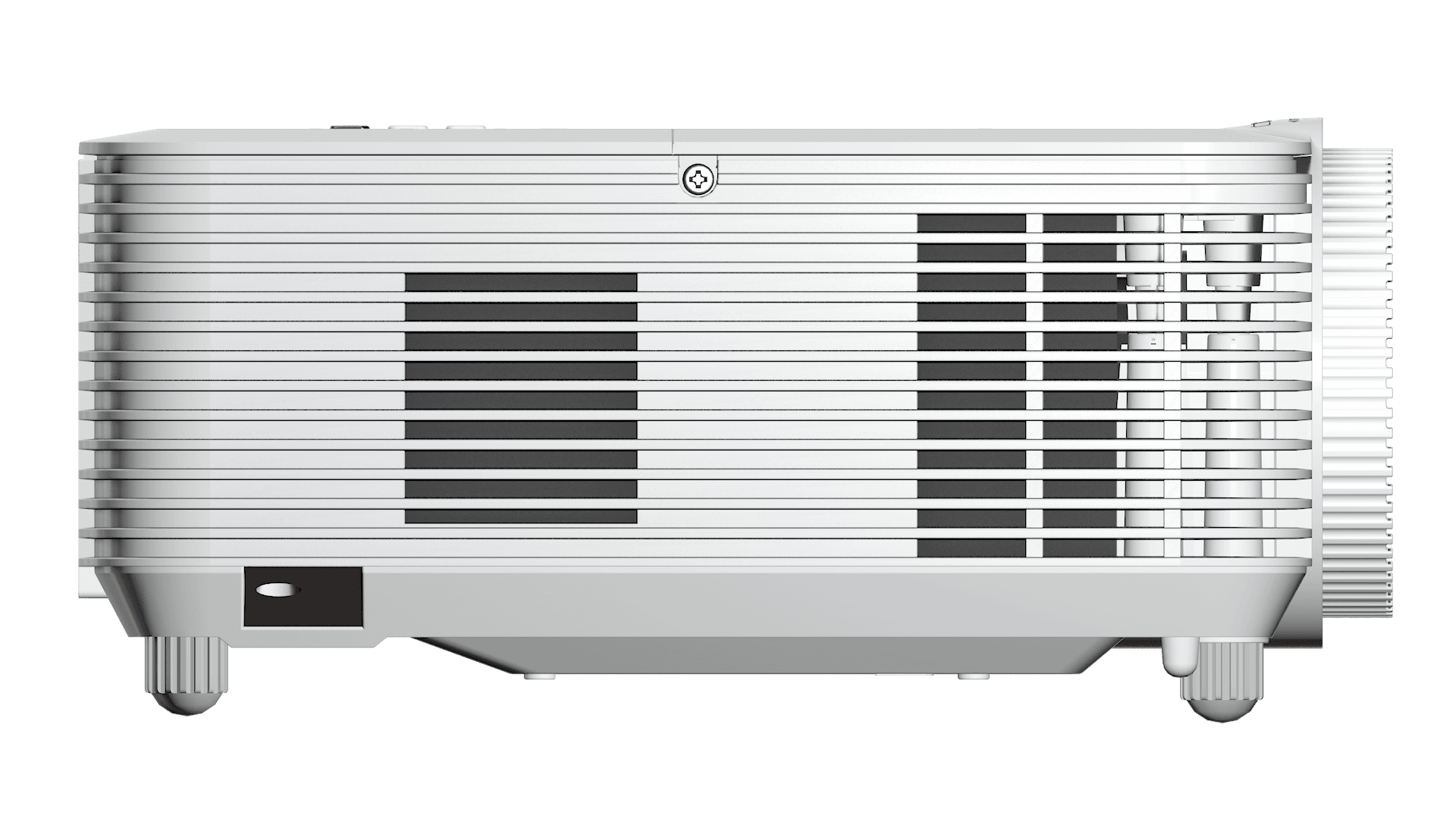

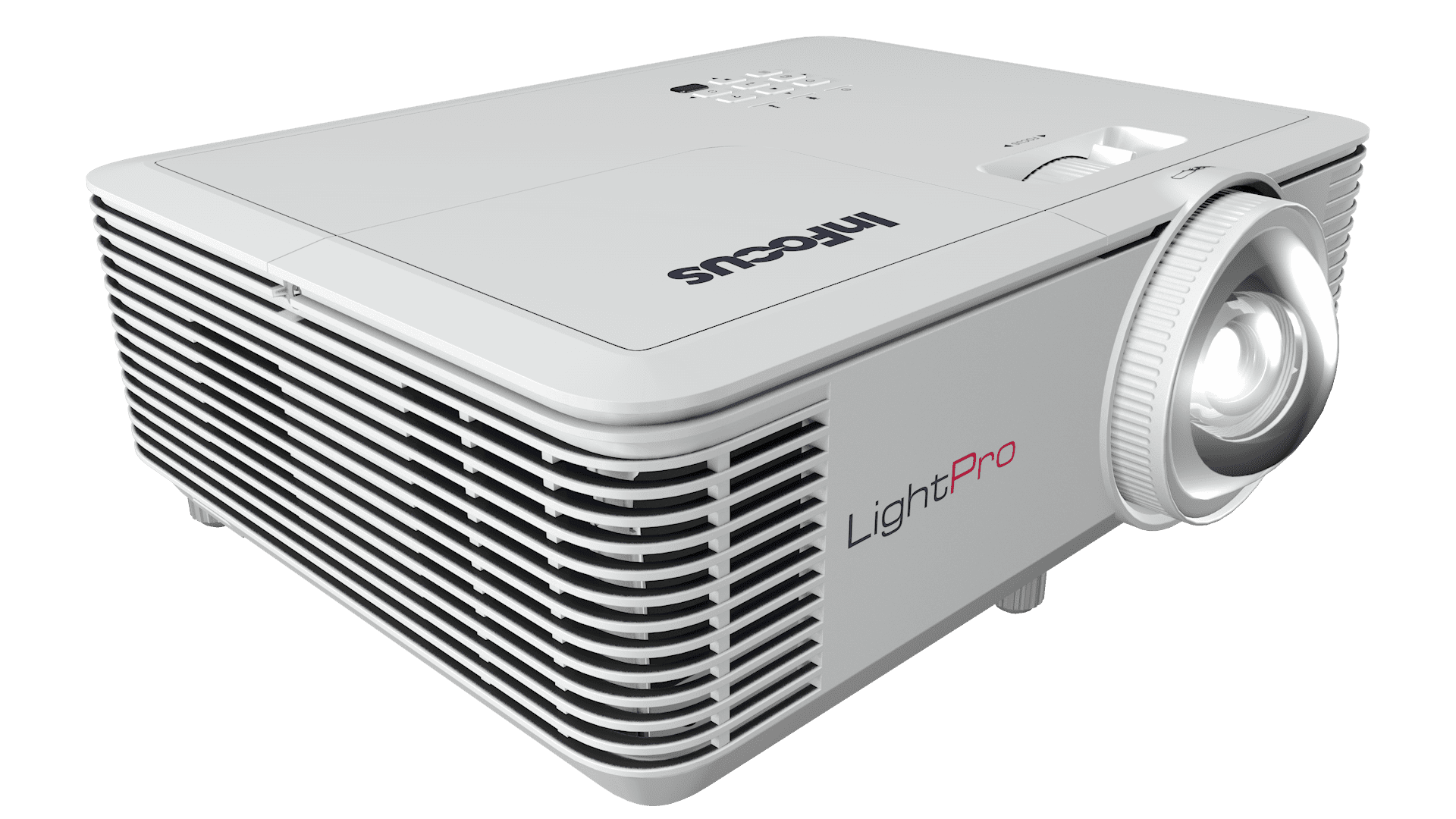

InFocus Vista II Series
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | XGA (1024 x 768) / 4:3 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 4600 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | WXGA (1280 x 800) / 16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 4700 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | 1080p Full HD (1920 x 1080) / 16:9 |
| Brightness (Lumens) | 4400 |
| Lens Throw Type | Standard |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | XGA / 4:3 |
| Lens Throw Type | Short Throw |
| Brightness (Lumens) | 4200 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | WXGA / 16:10 |
| Lens Throw Type | Short Throw |
| Brightness (Lumens) | 4300 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
| Projection Technology / Light Source | Texas Instruments DLP® / UHP Lamp |
| Native Resolution / Aspect Ratio | 1080p / 16:9 |
| Lens Throw Type | Short Throw |
| Brightness (Lumens) | 4000 |
| Light Source Life Maximum (Hours) | 15000 |
| Product Weight (Kilograms / Pounds) | 2.9 / 6.4 |
SELECT A PRODUCT BELOW
| Datasheet | Compare |
Description
Network DLP® Projectors with Creston Connect 2.0
Experience the exceptional performance of InFocus Vista II Series Network DLP® projectors. These projectors are designed for mid-size conference rooms, training rooms, and lecture rooms and offer a wide range of impressive features.
The Vista II Series is the ideal display solution, with high brightness, remarkable lamp life, and seamless integration capabilities for your network.
All six models in the Vista II Series meet the Crestron Connected Network Communication Protocols and are compatible with Crestron XiO Cloud® Service, ensuring robust control and ease of integration.
Key Features
Industry-leading 15000 hours of lamp life
- Our lamps are designed to last longer, ensuring extended durability and long-term performance. This exceptional longevity reduces the need for replacements, offering unparalleled reliability and cost savings over time.
Bright, Vivid Images on Any Surface with up to 4700 lumens
- Transform any room into a dynamic presentation space or vibrant cinema even in ambient environment. With 4700 lumens on standard lens models and 4000-4300 lumens on short throw models, image colours and details are crisp and clear.
Easy Network Integration for Control and Administration
- Compatible with all major network protocol standards, including PJLink, AMX Dynamic discovery, Extron IPLink, and an extensive set of RS232 commands for flexible and convenient integration into existing network setup.
Eco-Friendly with Minimal Maintenance and Filter-Free
- With minimal maintenance and no filter to replace, this means less waste and reduced environmental impact contributing to sustainability for a greener future while providing reliable and consistent performance.
Outstanding 30000 : 1 Contrast Ratio for Better Visual Quality
- Indulge in a vivid, clear visual feast with enhanced image clarity and better details with deeper blacks, brighter whites and more vibrant colours.
Benefits
Advanced Digital Image Correction
With the new digital edge masking and image shift features, we make perfecting those final image adjustments easy.
High Resolution from XGA to 1080P
Enjoy the flexibility and versatility needed to handle any projection scenario, ensuring your visuals are always crisp, clear, and impactful.
Direct Power On/ Direct Power Off
No more waiting. The projector instantly powers up when it receives an electric current. When you are finished, simply switch off the power, no need for lengthy cooling period to shut it down.
24/7 Operation
The Vista II Series is designed for 24/7 operations in standard orientation and is ideal for applications requiring extended projection periods.
USB-A Power for Devices
The integrated USB-A power source conveniently powers HDMI devices like Google Chromecast or a wireless dongle to enhance presentation performance.
Lower Total Cost of Ownership
Incredible 15,000 hours of lamp life and filter-free lamp design offers unbeatable value and makes it a smart money saving investment.
Full 3D Capability
Captivate the audience with 3D content from almost any 3D source, including 3D Blu-ray players and the latest game consoles.
Versatile and Lightweight
Its compact and light form gives you flexibility to move it around or install it.
Projection Technology
Texas Instruments DLP®
Panel Size
0.55" DMD
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
30000:1
Brightness (Lumens)
4600
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
21.85 ~ 24.01
F-Stop
2.43
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual / Automatic
Vertical Keystone Correction
± 40°
Horizontal Keystone Correction
-
Projection Factor
1.48 ~ 1.93
Projection Distance (Meters/Feet)
1.0 ~ 9.1 / 3.28 ~ 29.85
Optical Zoom
1.3:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual

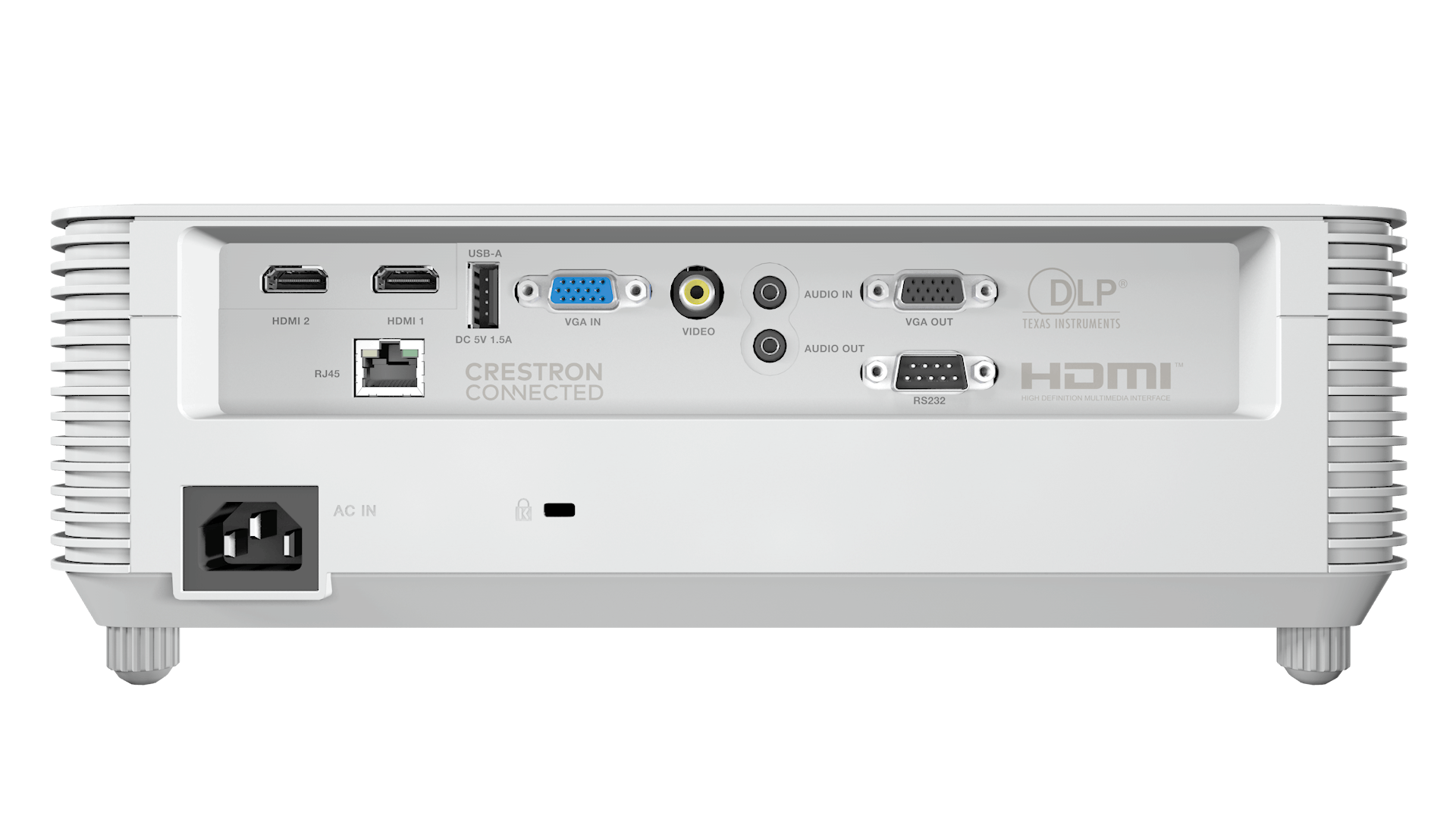

Inputs
Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA)
Networking & Control
RJ45, RS232
Embeded System
-
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm / in)
313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
Projection Technology
Texas Instruments DLP®
Panel Size
0.65" DMD
Native Resolution
WXGA
Pixels
1280 x 800
Aspect Ratio
16:10
Contrast Ratio
30000:1
Brightness (Lumens)
4700
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
112.4
Focal Length (mm)
21.85 ~ 24.01
F-Stop
2.7
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual / Automatic
Vertical Keystone Correction
± 40°
Horizontal Keystone Correction
-
Projection Factor
1.19 ~ 1.54
Projection Distance (Meters/Feet)
1.0 ~ 7.7 / 3.28 ~ 22.26
Optical Zoom
1.3:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA)
Networking & Control
RJ45, RS232
Embeded System
-
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm / in)
313 x 236 x 96.4 / 12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
Projection Technology
Texas Instruments DLP®
Panel Size
0.65" DMD
Native Resolution
1080p
Pixels
1920 x 1080
Aspect Ratio
16:9
Contrast Ratio
30000:1
Brightness (Lumens)
4400
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
116
Focal Length (mm)
21.85 ~ 24.01
F-Stop
2.43
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual / Automatic
Vertical Keystone Correction
± 40°
Horizontal Keystone Correction
-
Projection Factor
1.13 ~ 1.47
Projection Distance (Meters/Feet)
1.0 ~ 10.0 / 3.28 ~ 32.80
Optical Zoom
1.3:1
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA)
Networking & Control
RJ45, RS232
Embeded System
-
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (W x H x D) (mm / in)
313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
Projection Technology
Texas Instruments DLP®
Panel Size
0.55" DMD
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
30000:1
Brightness (Lumens)
4200
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1:1 Fixed
Lens Zoom Adjustment
-
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
7.15
F-Stop
2.8
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual / Automatic
Vertical Keystone Correction
± 20°
Horizontal Keystone Correction
-
Projection Factor
0.617
Projection Distance (Meters/Feet)
0.4 ~ 3.8 / 1.31 ~ 12.46
Optical Zoom
1:1 Fixed
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA)
Networking & Control
RJ45, RS232
Embeded System
-
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm / in)
313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
Projection Technology
Texas Instruments DLP®
Panel Size
0.65" DMD
Native Resolution
WXGA
Pixels
1280 X 800
Aspect Ratio
16:10
Contrast Ratio
30000:1
Brightness (Lumens)
4300
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1:1 Fixed
Lens Zoom Adjustment
-
Optional Lenses
-
Image Offset (%)
112.4
Focal Length (mm)
7.15
F-Stop
2.43
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual / Automatic
Vertical Keystone Correction
± 20°
Horizontal Keystone Correction
-
Projection Factor
0.521
Projection Distance (Meters/Feet)
0.4 ~ 3.4 / 1.31 ~ 11.15
Optical Zoom
1:1 Fixed
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA)
Networking & Control
RJ45, RS232
Embeded System
-
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm / in)
313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.9 / 6.4
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
Projection Technology
Texas Instruments DLP®
Panel Size
0.65" DMD
Native Resolution
1080p
Pixels
1920 x 1080
Aspect Ratio
16:9
Contrast Ratio
30000:1
Brightness (Lumens)
4000
Light Source
UHP Lamp
Light Source Life Maximum Hours
15000
Maximum Supported Resolution
1920 x 1200
Horizontal Sync. Range (KHz)
15 ~ 97.55
Vertical Sync. Range (Hz)
54 ~ 85
Uniformity (%)
80
Lens
1:1 Fixed
Lens Zoom Adjustment
-
Optional Lenses
-
Image Offset (%)
116
Focal Length (mm)
7.15
F-Stop
2.8
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Manual / Automatic
Vertical Keystone Correction
± 20°
Horizontal Keystone Correction
-
Projection Factor
0.496
Projection Distance (Meters/Feet)
0.4 ~ 3.3 / 1.31 ~ 10.82
Optical Zoom
1:1 Fixed
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA), Composite Video, 2 x HDMI™ 1.4, 3.5 mm Stereo Mini Jack, USB-A for Service
Outputs
3.5 mm Stereo Mini Jack, Powered USB-A for Wireless Dongle, Mini D-sub 15-pin (VGA)
Networking & Control
RJ45, RS232
Embeded System
-
3D
Full 3D All Major Formats
Power Supply
100 ~ 240 V AC; 50 ~ 60 Hz
Power Consumption Max (W)
267
Power Consumption Min. (W)
210
Power Consumption Network Standby (W)
<2.0
Power Consumption Standby (W)
<0.5
Product Dimensions (L x W x H) (mm / in)
313 x 236 x 96.4 /12.4 x 9.3 x 3.8
Product Weight (Kilograms/Pounds)
2.6 / 5.7
Packaged Dimensions (L x W x H) (mm / in)
395 x 337 x 166 / 15.6 x 13.3 x 6.5
Packaged Weight (Kilograms/Pounds)
4.1 / 9.0
Fan Noise (dB)
27
Audio (W)
1 x 10
Operating Temperature (Celsius/Fahrenheit)
5 ~ 40 / 41 ~ 104
Operating Humidity (%)
10 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~ 140
Storage Humidity (%)
10 ~ 85
Security
Kensington Security Slot™, PIN Code Lock & Timer
Safety and Regulatory
CB, CE, EAC, cTUVus, CCC, FCC, UKCA, NOM, PSB, BIS
Environmental
WEEE, EU RoHS, China RoHS, CEL, CECP
Simplified Users Guide
Users Guide
