Core Series
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | XGA / 4:3 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3100 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms/Pounds) | 3.9 / 8.6 |
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | XGA / 4:3 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3500 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 3.9 / 8.6 |
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | WXGA / 16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3500 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 3.9 / 8.6 |
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | WXGA / 16:10 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3500 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 3.9 / 8.6 |
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | 1080p / 16:9 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3000 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 3.9 / 8.6 |
| Projection Technology / Light Source | Texas Instruments DLP® / Quantum Laser |
| Native Resolution / Aspect Ratio | 1080p / 16:9 |
| Lens Throw Type | Standard |
| Brightness (Lumens) | 3000 |
| Light Source Life Maximum (Hours) | 30000 |
| Product Weight (Kilograms / Pounds) | 3.9 / 8.6 |
SELECT A PRODUCT BELOW
| Datasheet | Compare |
Description
Breaking new ground for laser projection value and total cost of ownership with no lamps to change, no filters to clean the Quantum Laser Core Series are feature-packed delivering up to 30,000 hours of 24/7, maintenance-free use.
Designed for maintenance-free continuous operation, the Core Series can be installed in virtually any orientation. Lightweight with a compact footprint combined with 360-degree and portrait projection enable flexible and effortless installation.
With a IP6X dust resistance rating the Core Series deliver outstanding dust resistance for 24/7 maintenance free operation in challenging environments.
Benefits
Lamp Free Environmentally-Friendly Laser Technology
Our Quantum Laser product line is reliable and environmentally friendly with solid-state laser light source technology. The complete product line is lamp, filter, mercury, and maintenance-free. The ultra-low energy usage for its class and long-standing durability and performance offers outstanding value and total cost of ownership.
Unparalleled Flexibility
Flexibility for almost every use model with a 1.3x optical zoom lens, front, rear, and ceiling placement and floor to ceiling projection, ceiling to floor, complete 360-degree installation across the horizontal axis, and not forgetting both landscape and portrait modes—ideal for meeting rooms, home office, classrooms, retail displays, fixed installations, bars, clubs, and restaurants and so much more.
Designed for maintenance-free 24/7 continuous operation
Designed for maintenance-free 24/7 continuous operation with advanced laser diode cooling and a IP6X rated dust resistant design.
SuperSmartProject
Our SuperSmartProject suite of power-saving, power optimisation, and utilisation features and functions combine ease of use and energy saving for your everyday use. Instant power on, signal power on, instant power off, auto power-off, 10 step illumination reduction, and Dynamic Black optimisation all help enhance your viewing experience while optimising energy usage.
Quantum Laser Engine
We incorporate laser phosphor illumination technology with blue laser diodes instead of traditional lamps to illuminate the Texas Instruments DLP digital micromirror device. The InFocus Quantum Laser engine produces vivid colours and exceptional image quality.
4K Ultra HD Support on Native 1080p Models
Simply stunning image quality with up to 1920 x 1080 native resolution, HDMI 2.0 (HDCP 2.2) 4K Ultra HD and High dynamic range (HDR) support. The projected image has life texture details and improved image depth perception that pops off the screen.
Projection Technology
Texas Instruments DLP®
Panel Size
0.55"
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
2000000:1
Brightness (Lumens)
3100
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1080
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz)
50 ~ 120
Uniformity (%)
85
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
16.901 ~ 21.607
F-Stop
2.43 ~ 2.78
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Automatic / Manual
Vertical Keystone Correction
±30°
Horizontal Keystone Correction
-
Projection Factor
1.49 ~ 1.93:1
Projection Distance (Meters/Feet)
1.2 ~ 9.1 / 3.9 ~ 29.9
Optical Zoom
Manual
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual

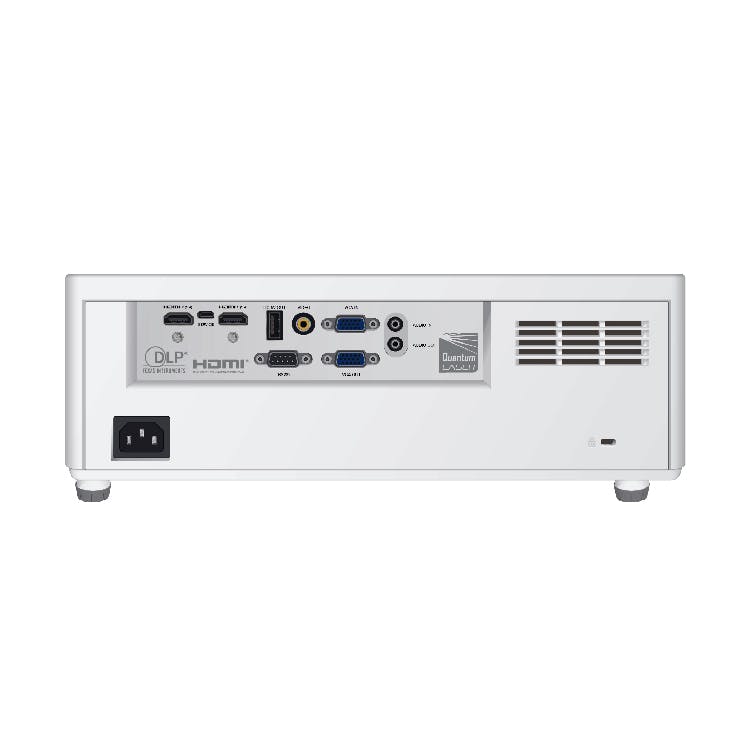

Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
✅
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
✅
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
-
Micro USB for Service
✅
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power Supply
100 ~ 240 V AC; 50 - 60 Hz
Power Consumption Max (W)
161
Power Consumption Min. (W)
138
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
Dimensions (W x H x D) (mm / in)
337 x 265 x 119.3 / 13.27 x 10.4 x 4.7
Product Weight (Kilograms/Pounds)
3.9 / 8.6
Fan Noise (dB)
28 ~ 30
Audio (w)
1x 15
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
0 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~140
Storage Humidity (%)
0 ~ 85
Security
Kensington Lock Port™, PIN & Timer
In the Box
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap.
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
Projection Technology
Texas Instruments DLP®
Panel Size
0.55"
Native Resolution
XGA
Pixels
1024 x 768
Aspect Ratio
4:3
Contrast Ratio
2000000:1
Brightness (Lumens)
3500
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1080
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz)
50 ~ 120
Uniformity (%)
85
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
115
Focal Length (mm)
16.901 ~ 21.607
F-Stop
2.43 ~ 2.78
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Automatic / Manual
Vertical Keystone Correction
±30°
Horizontal Keystone Correction
-
Projection Factor
1.49 ~ 1.93:1
Projection Distance (Meters/Feet)
1.2 ~ 9.1 / 3.9 ~ 29.9
Optical Zoom
Manual
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
✅
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
✅
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
-
Micro USB for Service
✅
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power Supply
100 ~ 240 V AC; 50 - 60 Hz
Power Consumption Max (W)
161
Power Consumption Min. (W)
138
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
Dimensions (W x H x D) (mm / in)
337 x 265 x 119.3 / 13.27 x 10.4 x 4.7
Product Weight (Kilograms/Pounds)
3.9 / 8.6
Fan Noise (dB)
28 ~ 30
Audio (w)
1x 15
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
0 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~140
Storage Humidity (%)
0 ~ 85
Security
Kensington Lock Port™, PIN & Timer
In the Box
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap.
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
Projection Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
WXGA
Pixels
1280 x 800
Aspect Ratio
16:10
Contrast Ratio
3500000: 1
Brightness (Lumens)
3500
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1080
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz)
50 ~ 120
Uniformity (%)
85
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
112
Focal Length (mm)
16.901 ~ 21.607
F-Stop
2.43 ~ 2.78
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Automatic / Manual
Vertical Keystone Correction
±30°
Horizontal Keystone Correction
-
Projection Factor
1.19 ~ 1.54:1
Projection Distance (Meters/Feet)
1.2 ~ 7.7 / 3.9 ~ 25.3
Optical Zoom
Manual
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
✅
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
✅
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
-
Micro USB for Service
✅
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power Supply
100 ~ 240 V AC; 50 - 60 Hz
Power Consumption Max (W)
161
Power Consumption Min. (W)
138
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
Dimensions (W x H x D) (mm / in)
337 x 265 x 119.3 / 13.27 x 10.4 x 4.7
Product Weight (Kilograms/Pounds)
3.9 / 8.6
Fan Noise (dB)
28 ~ 30
Audio (w)
1x 15
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
0 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~140
Storage Humidity (%)
0 ~ 85
Security
Kensington Lock Port™, PIN & Timer
In the Box
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
Projection Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
WXGA
Pixels
1280 x 800
Aspect Ratio
16:10
Contrast Ratio
2000000:1
Brightness (Lumens)
3500
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
1920 x 1080
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz)
50 ~ 120
Uniformity (%)
85
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
112
Focal Length (mm)
16.901 ~ 21.607
F-Stop
2.43 ~ 2.78
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Automatic / Manual
Vertical Keystone Correction
±30°
Horizontal Keystone Correction
-
Projection Factor
1.19 ~ 1.54:1
Projection Distance (Meters/Feet)
1.2 ~ 7.7 / 3.9 ~ 25.3
Optical Zoom
Manual
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅✅
HDMI™ 2.0
-
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
✅
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
RS232
✅
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
-
Micro USB for Service
✅
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power Supply
100 ~ 240 V AC; 50 - 60 Hz
Power Consumption Max (W)
161
Power Consumption Min. (W)
138
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
Dimensions (W x H x D) (mm / in)
337 x 265 x 119.3 / 13.27 x 10.4 x 4.7
Product Weight (Kilograms/Pounds)
3.9 / 8.6
Fan Noise (dB)
28 ~ 30
Audio (w)
1x 15
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
0 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~140
Storage Humidity (%)
0 ~ 85
Security
Kensington Lock Port™, PIN & Timer
In the Box
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
Projection Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
1080p
Pixels
1920 x 1080
Aspect Ratio
16:9
Contrast Ratio
2000000:1
Brightness (Lumens)
3000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
4096 x 2160
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz)
50 ~ 120
Uniformity (%)
85
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
116
Focal Length (mm)
16.901 ~ 21.607
F-Stop
2.43 ~ 2.78
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Automatic / Manual
Vertical Keystone Correction
±30°
Horizontal Keystone Correction
-
Projection Factor
1.13 ~ 1.47:1
Projection Distance (Meters/Feet)
1.2 ~ 7.5 / 3.9 ~ 24.6
Optical Zoom
Manual
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Inputs
Mini D-sub 15-pin (VGA)
✅
Composite Video
✅
S-Video
-
HDMI™ 1.4
✅
HDMI™ 2.0
✅
USB-B 2.0
-
RJ45 - LAN 10/100/1000
-
3.5 mm Stereo Mini Jack
✅
3.5 mm Stereo Mini Jack with Microphone
-
Outputs
Mini D-sub 15-pin (VGA)
✅
3.5 mm Stereo Mini Jack
✅
Powered USB-A for Wireless Dongle
✅
3D Sync
-
Other
-
RS232
✅
RJ45 HDBaseT
-
All Major 3D Formats
✅
USB-B 2.0 for Service
-
USB-A for Service
-
Micro USB for Service
✅
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
12v Screen Trigger
-
Power Supply
100 ~ 240 V AC; 50 - 60 Hz
Power Consumption Max (W)
161
Power Consumption Min. (W)
138
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
Dimensions (W x H x D) (mm / in)
337 x 265 x 119.3 / 13.27 x 10.4 x 4.7
Product Weight (Kilograms/Pounds)
3.9 / 8.6
Fan Noise (dB)
28 ~ 30
Audio (w)
1x 15
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
0 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~140
Storage Humidity (%)
0 ~ 85
Security
Kensington Lock Port™, PIN & Timer
In the Box
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
Projection Technology
Texas Instruments DLP®
Panel Size
0.65"
Native Resolution
1080p
Pixels
1920 x 1080
Aspect Ratio
16:9
Contrast Ratio
2000000:1
Brightness (Lumens)
3000
Light Source
Quantum Laser
Light Source Life Maximum Hours
30000
Maximum Supported Resolution
4096 x 2160
Horizontal Sync. Range (KHz)
15 ~ 100
Vertical Sync. Range (Hz)
50 ~ 120
Uniformity (%)
85
Lens
1.3x
Lens Zoom Adjustment
Manual
Optional Lenses
-
Image Offset (%)
116
Focal Length (mm)
16.901 ~ 21.607
F-Stop
2.43 ~ 2.78
Vertical Lens shift (%)
-
Horizontal Lens shift (%)
-
Keystone Adjustment
Automatic / Manual
Vertical Keystone Correction
±30°
Horizontal Keystone Correction
-
Projection Factor
1.13 ~ 1.47:1
Projection Distance (Meters/Feet)
1.2 ~ 7.5 / 3.9 ~ 24.6
Optical Zoom
Manual
Digital Zoom Demagnification / Magnification
0.8x ~ 2.0x
Focus Adjustment
Manual
Analog Input
VGA, Composite Video
Analog Output
VGA
Digital Input
HDMI™ 1.4, HDMI™ 2.0
Digital Output
-
Audio Input
3.5mm
Audio Output
3.5mm
Control
RS232, Micro USB
Service
Micro USB
Powered USB for Wireless Dongle
USB-A
3D Sync
-
Full 3D Support
Yes
3D Formats
All Major Formats Supported
Document Reader
-
Video Player
-
Photo Viewer
-
Music Player
-
PC Less Compatibility
-
Power Supply
100 ~ 240 V AC; 50 - 60 Hz
Power Consumption Max (W)
161
Power Consumption Min. (W)
138
Power Consumption Network Standby (W)
-
Power Consumption Standby (W)
<0.5
Dimensions (W x H x D) (mm / in)
337 x 265 x 119.3 / 13.27 x 10.4 x 4.7
Product Weight (Kilograms/Pounds)
3.9 / 8.6
Fan Noise (dB)
28 ~ 30
Audio (w)
1x 15
Operating Temperature (Celsius/Fahrenheit)
0 ~ 40 / 32 ~ 104
Operating Humidity (%)
0 ~ 85
Max Operating Altitude (meters / feet)
3048 / 10000
Storage Temperature (Celsius/Fahrenheit)
-10 ~ 60 / 14 ~140
Storage Humidity (%)
0 ~ 85
Security
Kensington Lock Port™, PIN & Timer
In the Box
Projector, IR Remote Control (no Batteries), Power Cord, VGA Cable, Projector, Setup Guide, Lens Cap
Safety and Regulatory
CE, EAC, RoHS, cTUVus, CCC, FCC, FDA, NOM
Environmental
WEEE, RoHS
Simplified User Guide
User Guide
Warranty Statement
